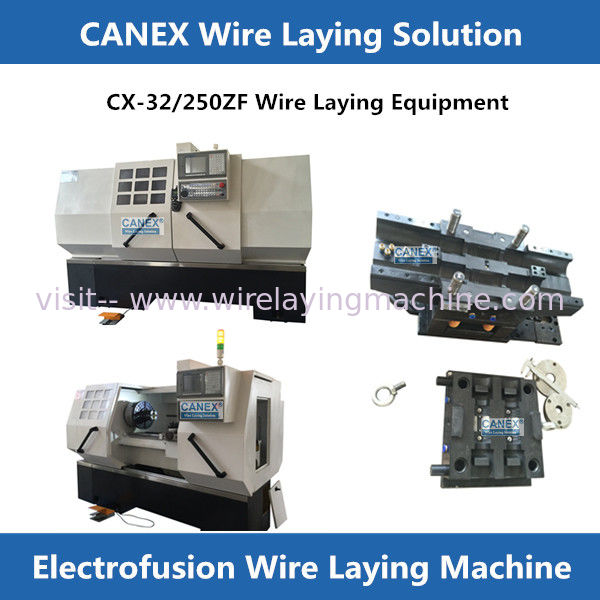

CX-32/250ZF Electrofusion Wire Laying Machine
cx-160/400zf electrofusion fittings production equipment
New CNC electrofusion fitting wire laying machine
электрослияние провод кладка машина
For the production of polyethylene (PE) Electrofusion Fittings CNC Controlled wire laying machine
Size for : 32----250 Pipe couplings/45-90 elbow / Reducer/ Tee
Working way : horizontal wire laying machine
Electro fusion Coupler made of : pipe section /injection mould fittings.
Applications :
E/F Coupling : 32-250
E/F Flange : 32-250 electrofusion coupling wire laying machine
E/F Reducer : 32-110 tapping saddle wire laying machine
E/F Tee : 32-110 Electrofusion wire laying machine for CX--400/630ZF Hdpe pipe couplers.
E/F Elbow 45/90 : 32-110
Electrofusion Pad,Saddle ELECTRO-FUSION FITTING PRODUCTION EQUIPMENT
Horizontal Wire Laying Model and Size Range
ONE---- Electrofusion fittings
Electrofusion fittings:
Electrofusion fittings are used as pipe connecting, tube inner wall surface embedded heating with copper wire,
copper wire at both ends of the connection dedicated electric welding machine with terminals.
Electrofusion Welding
Applying a controllable ends embedded in the copper tube fever upper power supply voltage terminal,
so that it is embedded in the tubular member under the action of the copper current to generate heat,
the surface of the plastic pipe and the inner surface of the pipe member is inserted into the tube and melt through the
plastic melt expansion force of the surface and the inner surface of the pipe fittings tangled molten plastic, play a role in the connection after melt cooling.
CANEX Electrofusion Wire Laying Machine-Process
Injection Molded fittings or PE Pipe as material for Electrofusion fittings,By mechanical boring cutting to achieve required inner size,
Embedded copper wires into the fittings,shape the inner surface. All processes are finished after one time setup.
The principle of wire laying.
Pipe fittings rotate with special wiring tool.
The wiring cutter move in accordance with CNC Programming, form a continuous fixed or variable pitch;
Wiring tool cut the inner surface, scratched plastic will curve outside, embedded copper wire at the same time.
Close the scratched plastic with wheels. cx-32/160 canex cnc e/f wire laying machine
Features
1 High precision of pipe inner size(Ovality less than 0.1mm).
2 Easy operation, Controlled by CNC Parameters.
3 Copper wire buried by the way of cold process.wires are not encounter relaxation force or fallen.
4 Low individual differences of resistance. Facilitate unified welding process.
Production efficiency
| Spec(mm) | 32-110 | 140-250 | 315-630 | 710-1000 |
| Time(min) | 3-5 | 6-8 | 10-15 | 18-25 |
| Tolerance(mm) | 0.05-0.1 | 0.05-0.2 | 0.1-0.2 | 0.1-0.2 |
| Pitch(mm) | Any(CNC Programming Control) |
delta cnc wire laying machine
TWO---- Electrofusion fitting equipment CX-160/400ZF electro fusion wire laying machine for socket fusion fittings / branch saddle wire laying machine
Device Configuration
1,Control system adopt DELTA CNC, our company united DELTA since 2009 , Develop 4 Axis CNC System according to our pipe fitting wire laying process design,
Our company own proprietary intellectual property rights. delta cnc electro fusion wire laying equipment
2,Wire laying machine : Horizontal format machines and Vertical format machines. wire winding machine
3,Adopt hydraulic or pneumatic automatic way of fastening. 4 Axis CNC Control System assure production phase and repeatedly operations.
4,Adopt wireless hand wheel control, enjoy convenient operations
Equipment Operating Procedures
1 Pipes fittings put into machine main clamp manually.
2 Cutting inner surface of pipe fittings as per CNC Programming.Achieve required size
3 Embedding wires into pipe inner surface as per CNC Programming, meet design demands` pitch.(wire laying)
4 Shaping inner embedded wire wall as per programmed CNC,in order to reach targeted tech demands
Canex-Laying Wire Steps
1 Heavy boring.
Boring and chamfering under the condition of main axis started,
hole & angle as per tech demands,Edit program processing automatically. (can be changed as per demands)
2 Laying wire
The process of embedding wires called laying wire
3 Shaping.
Set final boring program comply with high demands on tolerance. (Exam.0.5mm distance from surface,set final boring program )
in order to assure roundness tolerance, inner hole tolerance,and assembling smoothly.
During the wire laying,the flipped plastic can not balance with inner surface,overmuch lead to inconvenient assembling,
suggest set final boring program. (as per practical situation)
Binding Post
1 Cutting wire and pass through centre hole of Binding post ;
2 Put binding post into stamping tool;
3 Press binding post into pipe fittings, remain the end of resistance at middle taper hole of binding post
( or pass through whole binding post), make use of the taper different to mesh.
Connection----
1) New way of connecion : welding by IGBT Intevert welder+ Argon gas
2) Chart for electrofusion fittings binding post connection : buckle on widely used.
CX-20/125ZF , Electrofusion Wire Laying Machine , pe coupling wire laying machine,
electro fusion wire laying machne, electrofusion wire laying machine,
equipment for the production of electrofusion , wire laying electrofusion
cx-20/160zf cx-32/160zf
cx-160/400zf cx-250/630zf
cx-315/630zf
CX-32/250ZF E/F FITTINGS PRODUCRION CNC MACHINE
CX-250/630ZF электрослияние провод кладка машина
CX-400/800ZF
CX-630/1200ZF
CX-32/160ZF пресс-форма электромуфта
Saddle wire laying machine
electrofusion tapping saddle wire laying
pad wire laying machine
1. Краткое описание устройства укладки проволоки электромуфтовой трубопроводной арматуры
В традиционном литьевом формировании электромуфтовой трубопроводной арматуры, перед литьем, нагревающаяся проволока обматывают сверху штамповой стали, затем завершают литье, в следствие того, что пластик формируется во время литья, для формовочных деталей существует определенная усадка (в процессе литья, увеличение диаметра отверстия и толщины стенки для припуска на усадку более отчетливое, когда литье трубопроводной арматуры превышает dn250, припуск на усадку может достичь 10 мм), таким образом формирование внутреннего овала электромуфтовой трубопроводной арматуры, может оказать влияние на установку и использование труб и трубопроводной арматуры, а также на электромуфтовую сварку.
В устройстве укладки проволоки электромуфтовой трубопроводной арматуры, произведенном Нашей компанией, после охлаждения литьевого формирования или для внутренней поверхности толстостенных труб РЕ, в качестве обработки, используется метод холодной нарезки, в процессе формирования электромуфтовой трубопроводной арматуры, во внутренние стенки вставляется нагревающаяся проволока, данная технология производства имеет следующие преимущества:
